EVOLUTION 7402 4mat CNC cutting & drilling center: The high performance CNC machining center for machining in the smallest space

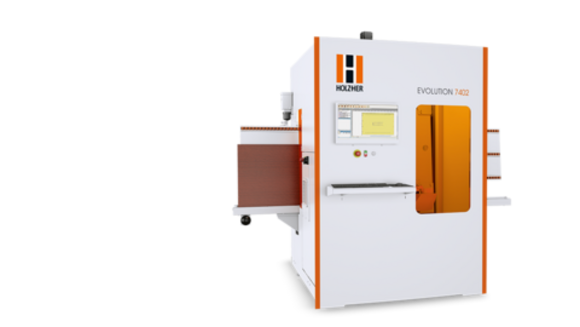

EVOLUTION 7402, the vertical drilling and cutting center from HOLZ-HER

The EVOLUTION series from HOLZ-HER is distinguished by well-thought-through industrial design and extremely stable layout using high quality components. Requiring less than 5 m² of floor space, this unique CNC machine offers the capacity of a full value machining center. The EVOLUTION 7402 is the optimum solution for customers requiring a cutter unit in addition to a pure drilling center.

The technical data for the EVOLUTION series speaks for itself: Workpieces with height up to 920 mm and unlimited length can be processed with the smallest possible space requirements. Material thicknesses of 8 to 70 mm make the vertical machining centers from HOLZ-HER all-round machines for producing everything from drawers to body parts, furniture fronts and rear walls; in short machining of all your products. Short cycling times and extreme precision, because workpieces with lengths up to 1,100 mm can be machined without reclamping. The solid design of the EVOLUTION series guarantees you maximum machining quality.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

Unterschiedliche Anforderungen – unterschiedliche Preise

Der Preis für eine HOLZ-HER Maschine ist so individuell wie Ihre Anforderungen. Deshalb besprechen wir am besten kurz, was Ihnen wichtig ist – und schon bekommen Sie ein erstes, unverbindliches Angebot von uns.

* Erforderliche Felder

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Technical Details

Quattro HSK, tool changer package for 4 tools

The Quattro HSK package offers new possibilities for machining

The 10.3 kW power spindle with speeds from 1,000 to 24,000 rpm is included in the 4-position tool changer package integrated into the EVOLUTION. With this package your machine is capable of 4-sided formating, profiling, pocket milling and completing cut-outs easily in one clamping operation.

7402 Doors Package

The optional EVOLUTION 7402 door package, consisting of a specially developed angle gear for lock boxes and a lock box cutter, expands the capabilities of this vertical CNC machine from HOLZ-HER.

This requires the Quattro HSK package with tool changer for 4 tools.

The door package allows complete machining of door leaves with a maximum thickness of up to 70 mm. This process machines the hinge side and lock side in two clamping operations. The 16 mm dia. shat cutter allows a cutting depth of up to 115 mm making it possible to cut lock boxes with different bolt dimensions. Handle and lock holes can also be drilled precisely using HOPS macros. After turning and reclamping the door leaf, it is possible to recess hinges for rabbeted doors as well as install concealed hinges or fittings for object doors.

3-axis Clamex package for the 7402

With the EVOLUTION 7402 you are free to choose your connection technology

In addition to drilling dowel holes and countersinking Cabineo connectors, the macros included with the EVOLUTION 7402 with Quattro HSK equipment and 3-axis Clamex tool set, also allow you to cut pockets for Lamello Clamex connectors in the X and Y directions, as well as in all four edges of the workpieces. You decide which connectors you need for your application.

xcut package for optimum strip processing

xcut package for optimum strip processing on HOLZ-HER’s Evolution CNC

Simple. Efficient. Cost saving - From panel strips to finished furniture.

With the xcut package the EVOLUTION automatically produces the required workpieces from panel strips previously cut in the longitudinal direction. This xcut mode completely eliminates cross-cuts otherwise required.

The xcut software lists all pending jobs on the machine monitor. This provides the machine operator with a perfect overview of all jobs. The strips are cut to the precise length, milled on 4 sides and drilled as required. This process ensures that the entire surface of the panel strips is utilized optimally.

In the so-called edge mode, you can also format the length of already edged strips without tearing. This makes the EVOLUTION 7402 and 7405 with optional xcut package a center for efficient carcass production.

xcut Highlights

  • xcut table – Extended entry table for secure guidance of long panel strips.
  • Workpiece database – “Warehouse” including open CSV interface Hop import and sorting feature.
  • Laser measurement – Automatic measurement of strip width and length with remnant recognition.
  • Automatic formating – Length and width formating with X and Y milling.
  • Part identification – Simply read in workpiece programs and mark using optional barcode scanner and Easy Label printer with labeling software.

7402 4mat means complete processing

Complete processing on all 4 sides with lengths up to 1,500 mm
Fully automatic thickness adaptation for workpieces from 8 to 70 mm

Complete processing on all 4 sides with lengths up to 800 mm without reclamping

  • Simply adjust the bottom jointing dimension – the rest is accomplished automatically.

Significantly shorter machining times

  • while maintaining maximum precision and machining quality.

Generous machining dimensions

  • Height up to 920 mm and length up to 2,500 mm without additional supports. And still extremely space-saving and compact.

Fully automatic thickness adaptation for workpieces from 8 to 70 mm

  • Ideal for rear walls, sides, fronts and even kitchen counter tops. These can be processed in any length in workshops with appropriate space and safety intervals.


The exceptional clamping concept

Fully automatic positioning of suction cups.

Fully automatic positioning of suction cups. Automatic contact pressure independent of material thickness for optimum results and precise dimensions.

Perfectly equipped - standard drilling head

15 drilling spindles for 5 in-line holes each in X and Y directions as well as 6 horizontal drills and integrated sawing unit

15 drilling spindles for 5 in-line holes each in X and Y directions as well as 6 horizontal drills and integrated sawing unit for quick and precise results. As an option, the EVOLUTION series can also be equipped for even higher performance with an XL-drilling head, with up to 22 drilling spindles and grooving saw.

Extra large XL drilling head

For even more drilling power - also with XL drilling head

For even more drilling power - also with XL drilling head

Thanks to the XL drilling head, the range of applications and the enormous versatility of the vertical machining center is further increased. Equipped with up to 22 spindles, the head can be generously equipped for drilling rows of holes, structural and through-holes - reducing time-wasting drill changes.

Above all the possibility to equip the head with an additional double-drilling spindle in the Y direction and an extra strong spindle for hinge drill bits brings a unique level of flexibility. This allows 5 mm and 8 mm holes to be drilled in the sides in both X and Y directions – flexibility to your advantage.

For holding all types of material

HOLZ-HER offers a variety of special suction cups for various types of material and processing requirements.
Solid wood suction cups - ideal for extremely heavy workpieces and applications with solid wood
You can change over your EVOLUTION machine for use on special materials within the shortest possible time.

HOLZ-HER offers a variety of special suction cups for  various types of material and processing requirements. This makes the EVOLUTION series even more versatile.

Standard suction cups with and without sensing valve

  • Ideal for processing panels

Solid wood suction cups

  • Ideal for extremely heavy workpieces and applications with solid wood

Quick change-over

  • You can change over your EVOLUTION machine for use on special materials within the shortest possible time.

Automatic tolerance correction

Automatic tolerance correction

Determination of exact length dimension and automatic correction of tolerances for dimension-dependent drilling. Perfect optional supplement for high precision drilling, e.g. for workpieces which have already been edged.

Short machining times

Up to 35% shorter machining cycles

Easy on material and time-saving, because workpieces with lengths up to 1200 mm can be machined without reclamping.

  • Up to 35% shorter machining cycles.

Unique Pic2Plate Software

HOLZ-HER offers the unique, patented Pic2Plate software allowing image data to be copied and vector cutting programs to be generated quickly and easily (optional on 7405 4mat and 7405 Connect).

  • Supplement your product portfolio to include light-reflex engraving with depth effect.
  • Generate unique visible and tactile works of art on your HOLZ-HER EVOLUTION CNC.
  • A normal photo or scan is all you need to create works of art in just a few steps for many types of applications and from different types of panel materials.
  • The Pic2Plate-Software is easy as pie to use!
  • The integrated post processor guarantees seamless transfer of the milling data to your HOLZ-HER CNC using CAMPUS software.
